TALON CEILING

Bi-directional, wall/ceiling or bollard luminaire. Body in die-cast aluminium with polycarbonate diffuser. Pole, base accessory for bollard version available separately.

Description

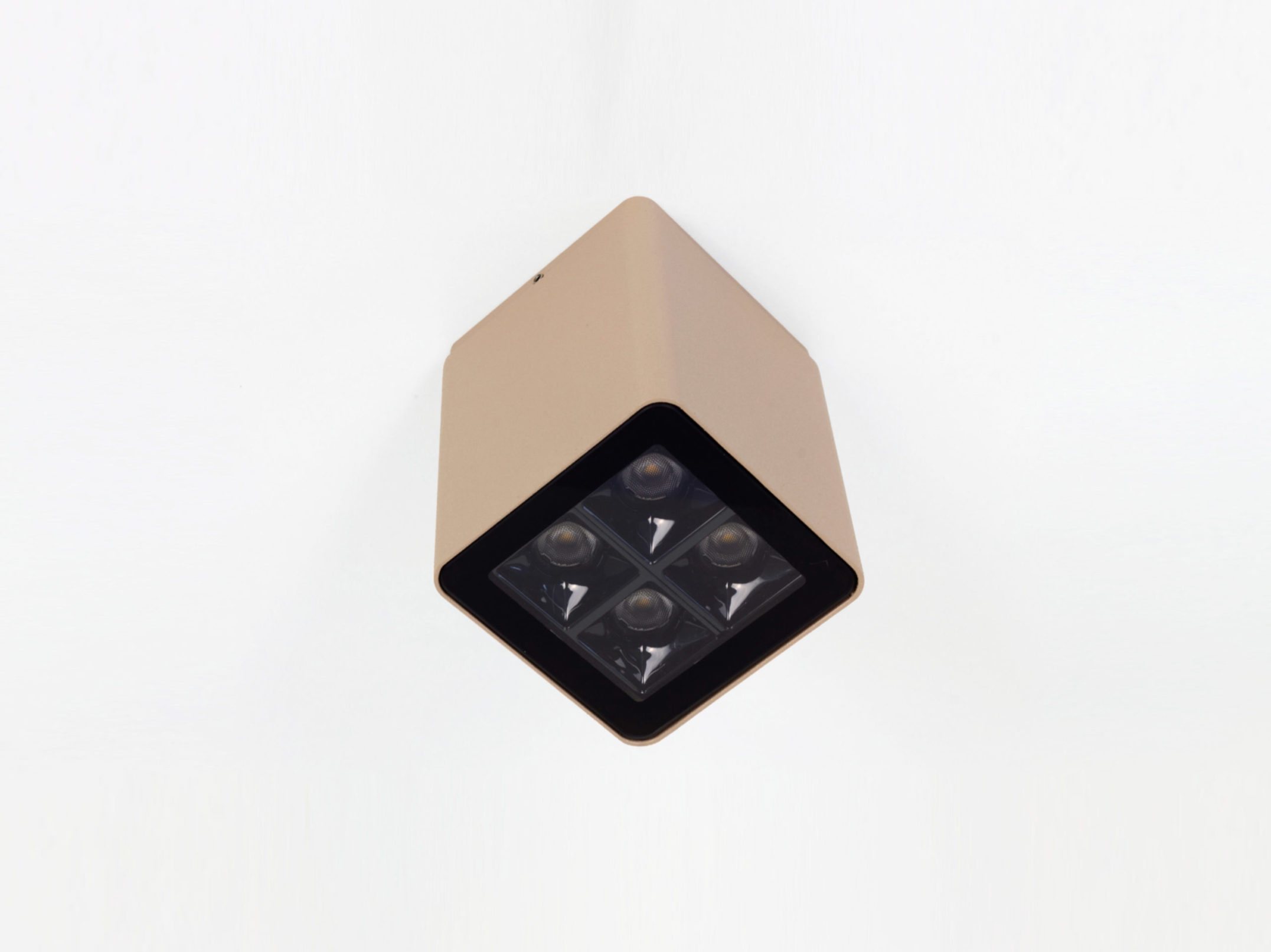

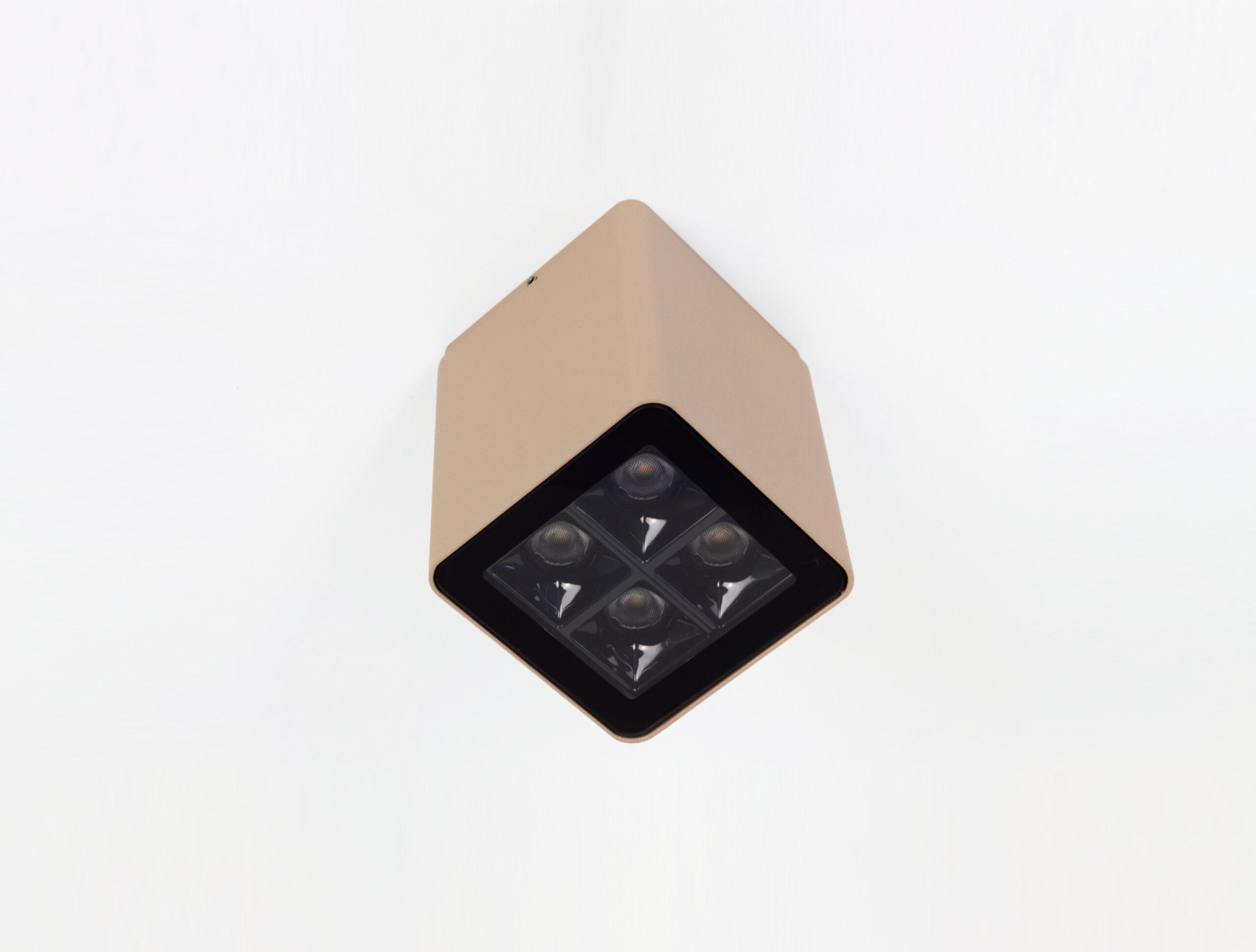

talon ceiling

Ceiling Mounted luminaire, EN47100 die-cast aluminium base and extruded structure.
Insulation CLASS I 220-240V
Phase cut dimmable
Available beams:
19°-30°-55°
Available finishes:
Solid white, Ibiza sand, Meteor grey and
Timeless aluminium







Talon Ceiling 19° LED 8,2W 10.7W 240V (3000k 796lm/4000k 836lm)

Colour temperature

3000K


4000K

Solid white
W

901111122


901121122

Ibiza sand
W

901111123


901121123

Meteor grey
W

901111124


901121124

Timeless aluminium

901111125


901121125

Downloads
W

PDF  LDT – IES

BIM  3DS  DWG

Talon Ceiling 32° LED 8,2W 10,7W 240V (3000k 800lm/4000k 840lm)

Colour temperature

3000K


4000K

Solid white
W

901111132


901121132

Ibiza sand
W

901111133


901121133

Meteor grey
W

901111134


901121134

Timeless aluminium

901111135


901121135

Downloads
W

PDF  LDT – IES

BIM  3DS  DWG

Talon Ceiling 65° LED 8,2W 10,7W 240V (3000k 760lm/4000k 798lm)

Colour temperature

3000K


4000K

Solid white
W

901111142


901121142

Ibiza sand
W

901111143


901121143

Meteor grey

901111144


901121144

Timeless aluminium

901111145


901121145

Downloads
W

PDF  LDT – IES

BIM  3DS  DWG

Talon Ceiling Diffused LED 4,8W 5,8W 240V (3000k 506lm/4000k 531lm)

Colour temperature

3000K


4000K

Solid white
W

901111152


901121152

Ibiza sand
W

901111153


901121153

Meteor grey
W

901111154


901121154

Timeless aluminium

901111155


901121155

Downloads
W

PDF  LDT – IES

BIM  3DS  DWG
