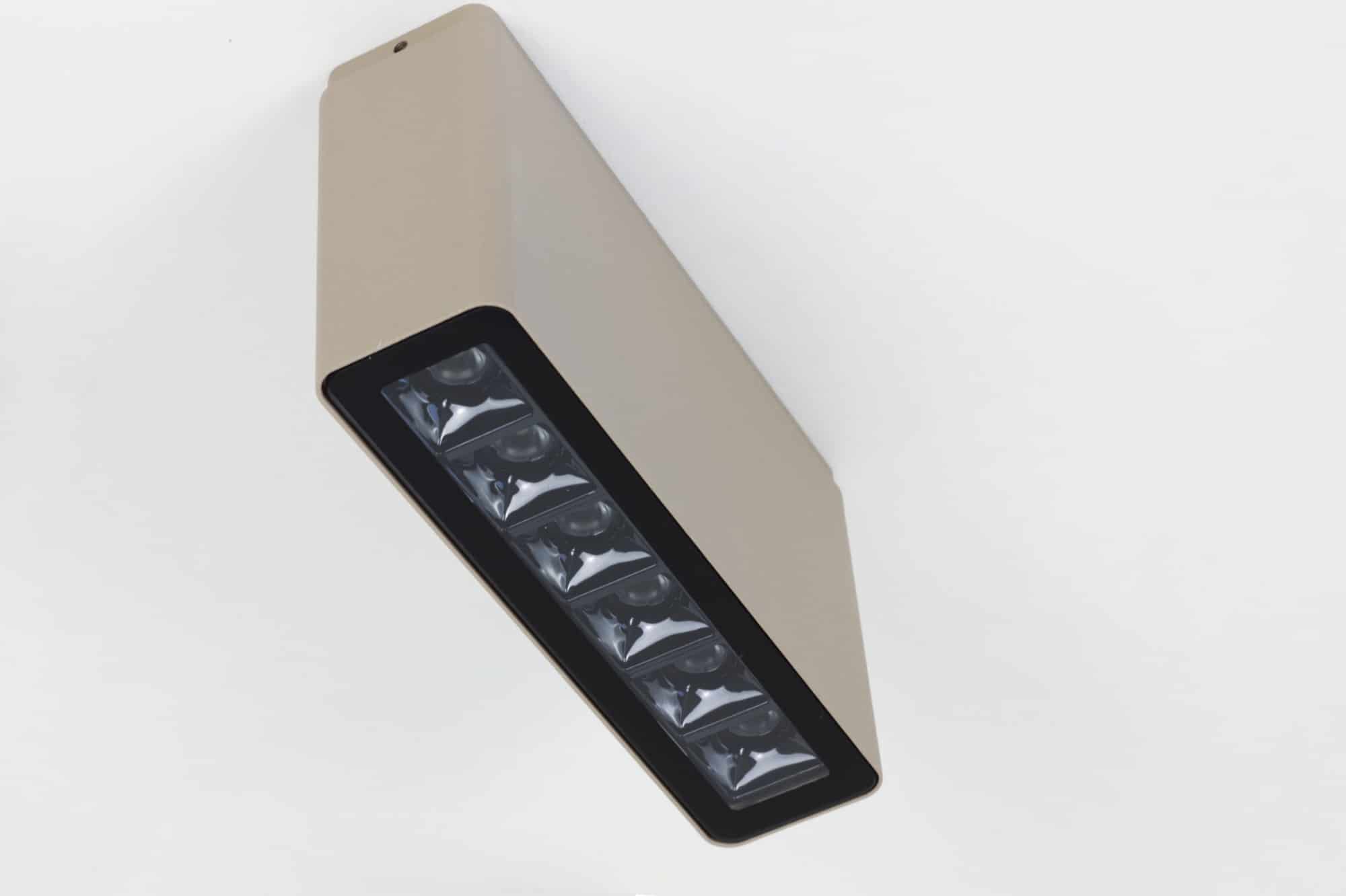

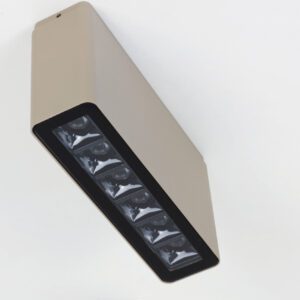

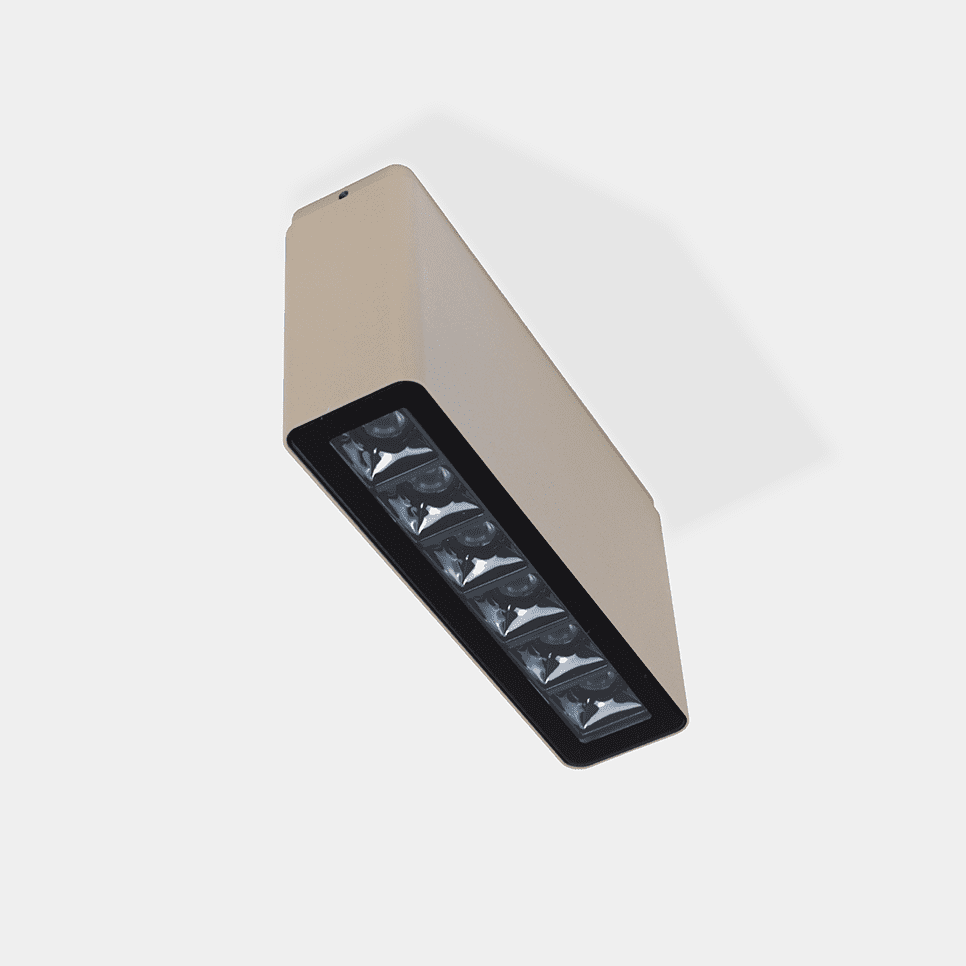

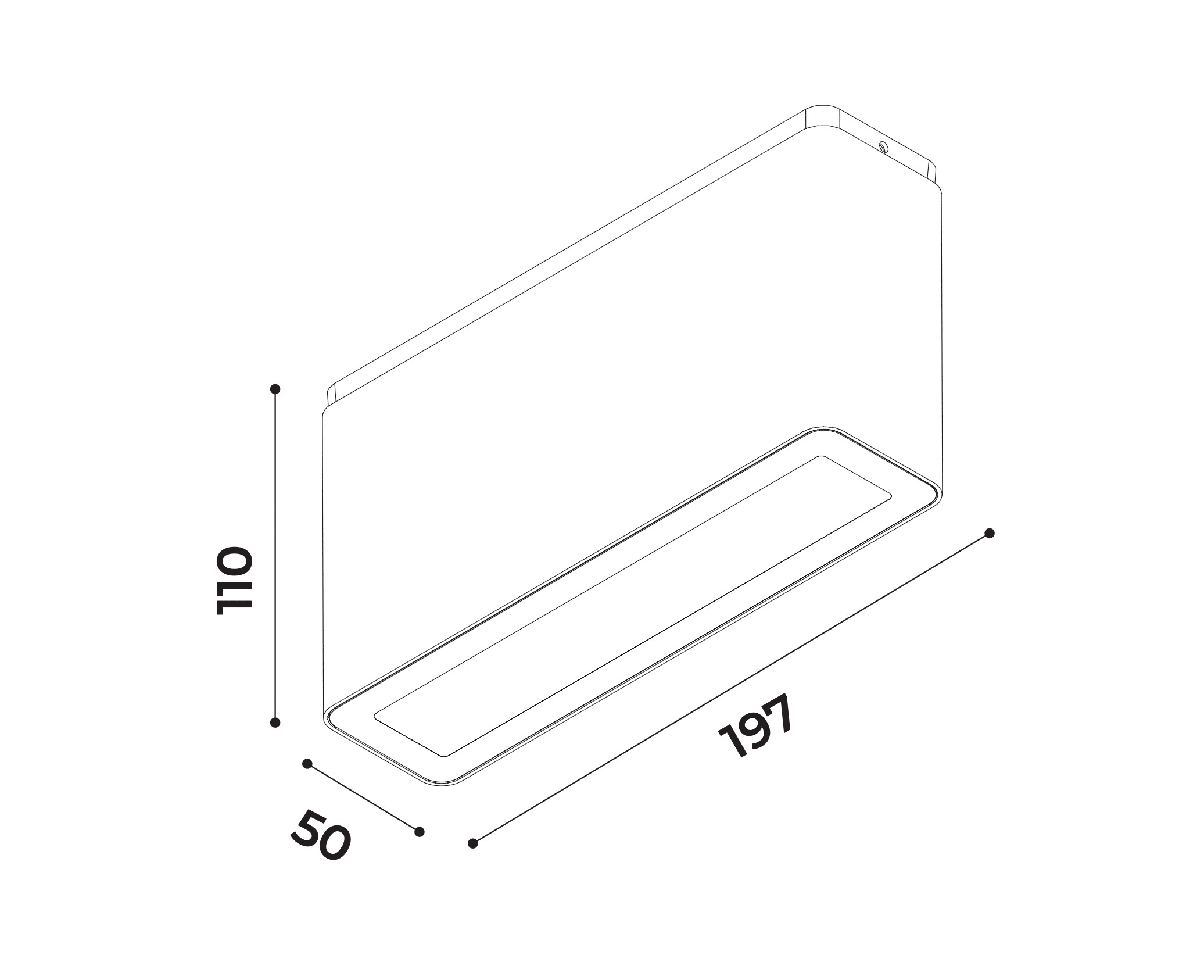

DIVAR CEILING

Bi-directional, wall/ceiling or bollard luminaire. Body in die-cast aluminium with polycarbonate diffuser. Pole, base accessory for bollard version available separately.

Description

divar-ceiling

Ceiling mounting luminaire. EN47100 die-cast aluminium base and extruded structure, single or double emission.
Powder polyester coated on treated layer to prevent corrosion, available in four standard colours. IP connectors and inox fixing clamp included.
Characterized by retrofit optics, low luminance shield and tempered transparent silkscreened glass for Power Led model and sandblasted for Mid Power Led.
Phase cut dimmable
Available beams:
19°-32°-65°
Available finishes:
Solid white, Ibiza sand, Meteor grey and
Timeless aluminium







Divar Ceiling 19° LED 12,1W 15,4W 240V (3000k 1177lm/4000k 1236lm)

Colour temperature

3000K


4000K

Solid white
w

901011042


901021042

Ibiza sand
w

901011043


901021043

Meteor grey
w

901011044


901021044

Timeless aluminium

901011045


901021045

Downloads
w

PDF  LDT – IES

BIM  3DS  DWG

Divar Ceiling 32° LED 12,1W 15,4W 240V (3000k 1137lm/4000k 1194lm)

Colour temperature

3000K


4000K

Solid white
w

901011062


901021062

Ibiza sand
w

901011063


901021063

Meteor grey
w

901011064


901021064

Timeless aluminium

901011065


901021065

Downloads
w

PDF  LDT – IES

BIM  3DS  DWG

Divar Ceiling 65° LED 12,1W 15,4W 240V (3000k 1137lm/4000k 1194lm)

Colour temperature

3000K


4000K

Solid white
w

901011072


901021072

Ibiza sand
w

901011073


901021073

Meteor grey
w

901011074


901021074

Timeless aluminium

901011075


901021075

Downloads
w

PDF  LDT – IES

BIM  3DS  DWG

Divar Ceiling Diffused LED 5,7W 7,2W 240V (3000k 527lm/4000k 553lm)

Colour temperature

3000K


4000K

Solid white
w

901011052


901021052

Ibiza sand
w

901011053


901021053

Meteor grey
w

901011054


901021054

Timeless aluminium

901011055


901021055

Downloads
w

PDF  LDT – IES

BIM  3DS  DWG
